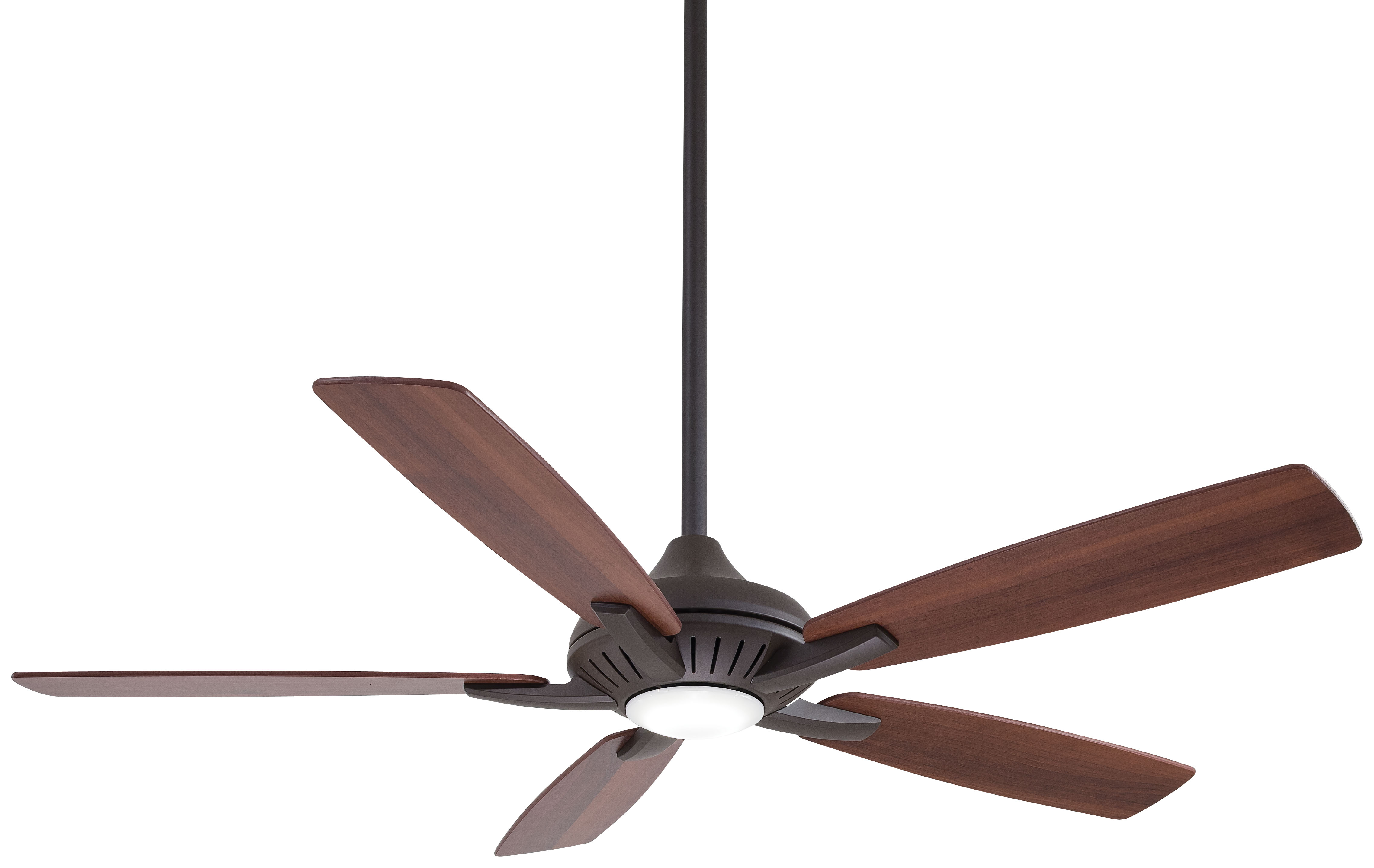

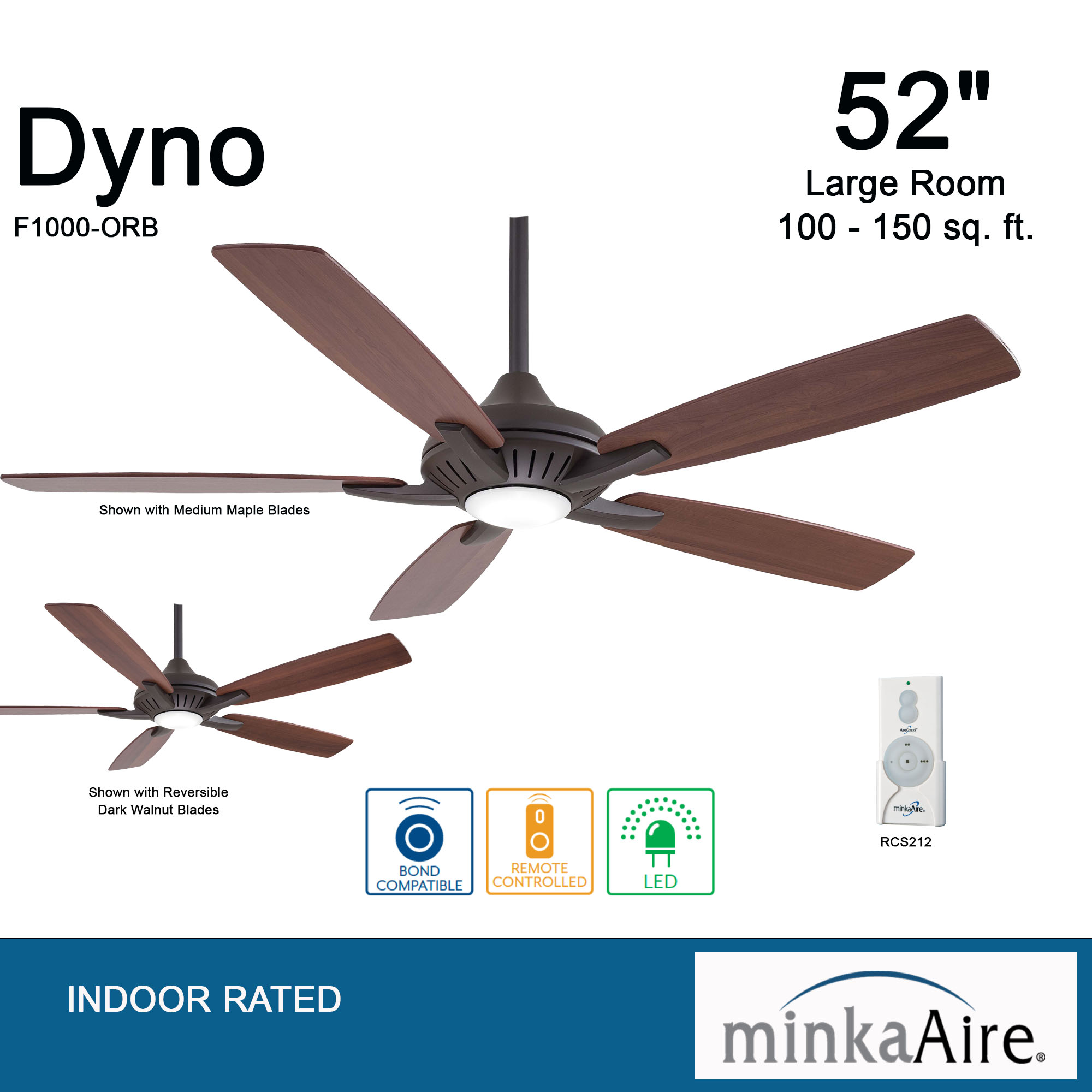

Dyno - LED 52" Ceiling Fan

F1000-ORB Minka-Aire®
NOTIFY ME
Description

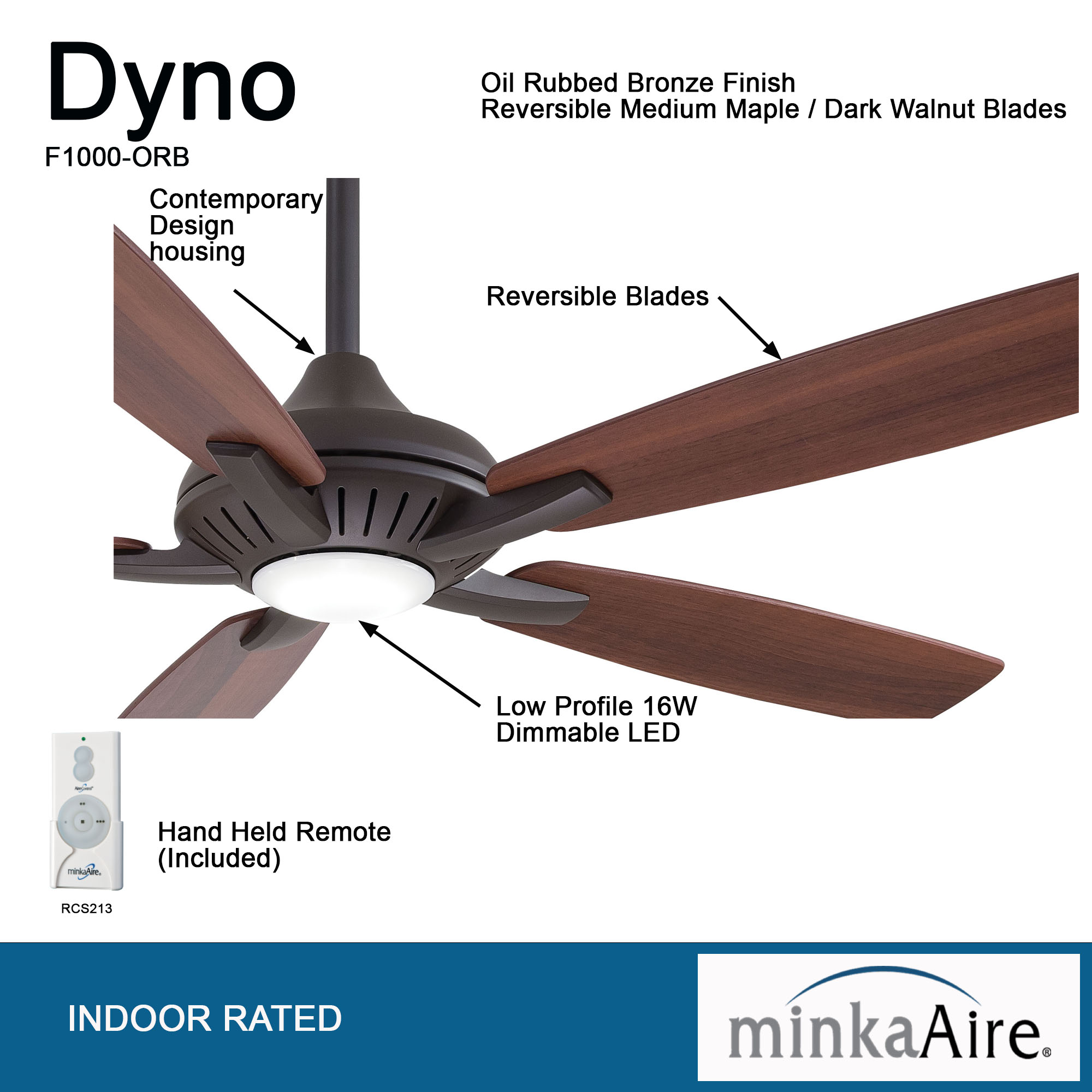

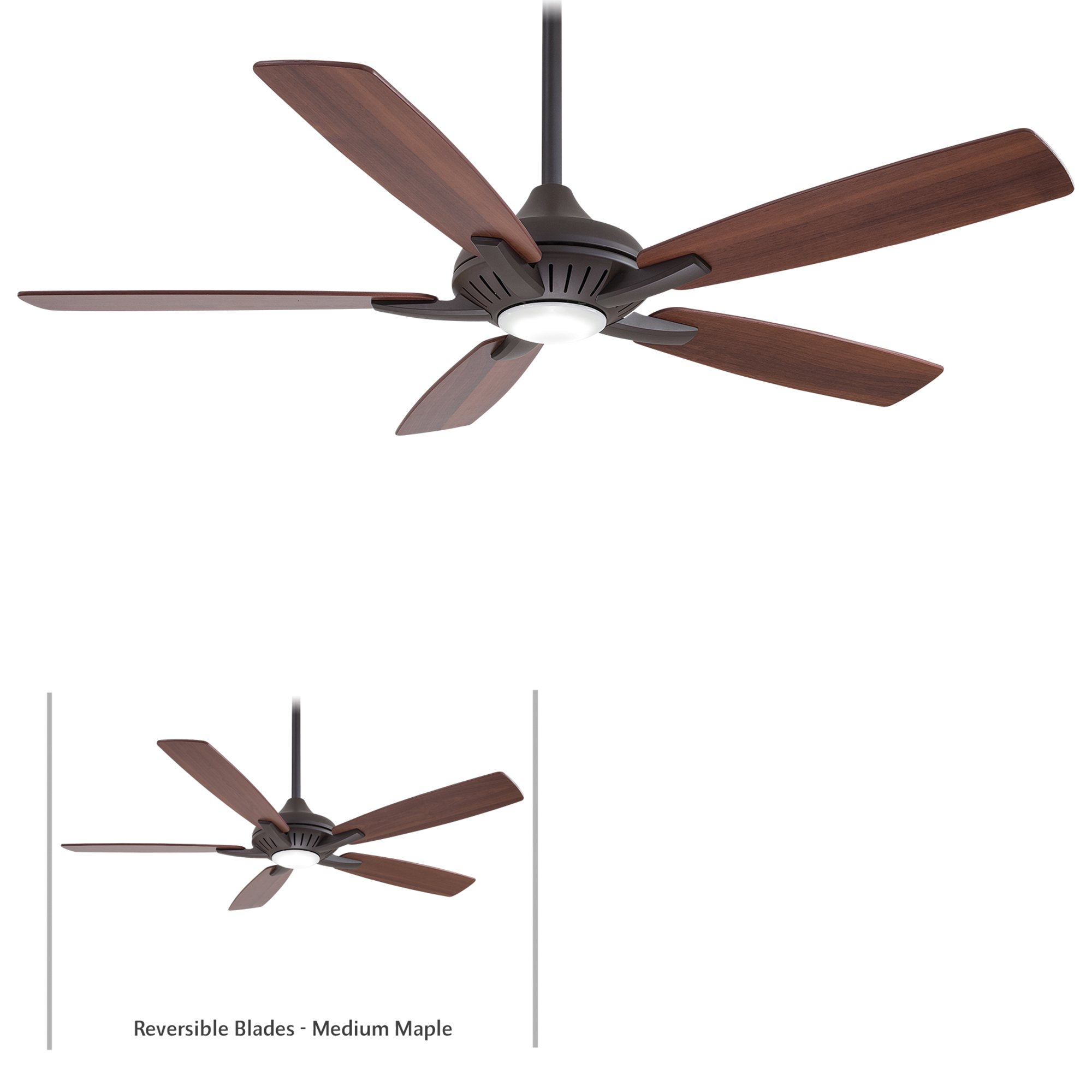

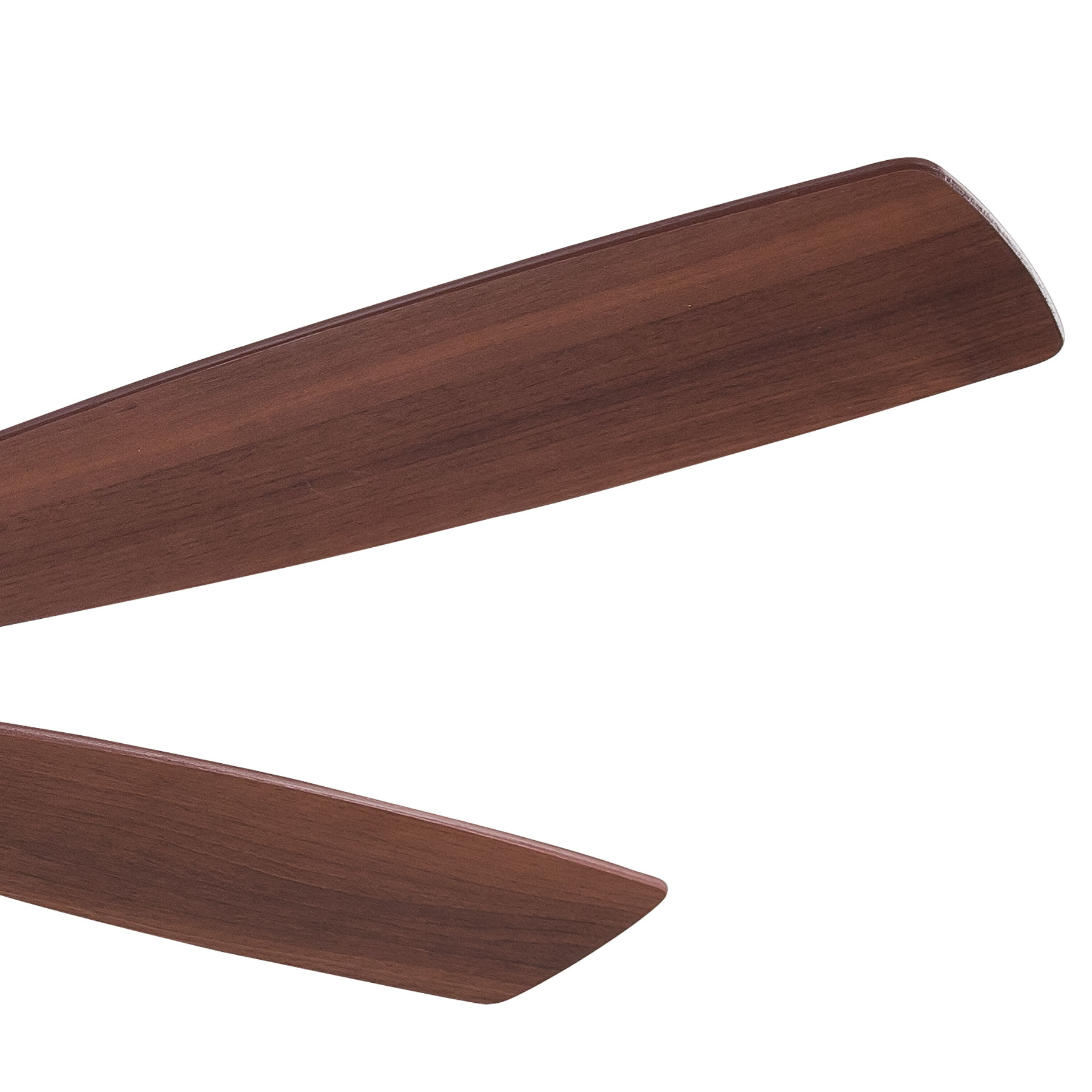

52" 5-Blade LED Ceiling Fan in Oil Rubbed Bronze Finish with Reversible Medium Maple and Dark Walnut Blades with Etched Lens

Available Finish: Oil Rubbed Bronze

PRODUCT FAMILY

Dyno by Minka-Aire®

F1000-BN
Dyno - LED 52" Ceiling Fan

F1000-BN Minka-Aire®

F1000-ORB
Dyno - LED 52" Ceiling Fan

F1000-ORB Minka-Aire®

F1000-WH
Dyno - LED 52" Ceiling Fan

F1000-WH Minka-Aire®

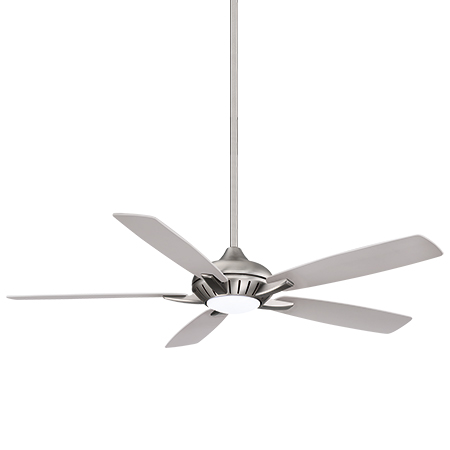

F1000-BN/SL
Dyno - LED 52" Ceiling Fan

F1000-BN/SL Minka-Aire®

F1000-BNK
Dyno - LED 52" Ceiling Fan

F1000-BNK Minka-Aire®

F1000-HBZ
Dyno - LED 52" Ceiling Fan

F1000-HBZ Minka-Aire®

F1000-CL
Dyno - LED 52" Ceiling Fan

F1000-CL Minka-Aire®

YOU MAY ALSO LIKE

F534L-BN
Lun-Aire - LED 54" Ceiling Fan

F534L-BN Minka-Aire®

F534L-CL
Lun-Aire - LED 54" Ceiling Fan

F534L-CL Minka-Aire®

F510L-ORB
Spacesaver - LED 26" Ceiling Fan

F510L-ORB Minka-Aire®

F510L-WH
Spacesaver - LED 26" Ceiling Fan

F510L-WH Minka-Aire®

F534L-ORB
Lun-Aire - LED 54" Ceiling Fan

F534L-ORB Minka-Aire®

F510L-BS
Spacesaver - LED 26" Ceiling Fan

F510L-BS Minka-Aire®

F534L-WH
Lun-Aire - LED 54" Ceiling Fan

F534L-WH Minka-Aire®

F510L-CL
Spacesaver - LED 26" Ceiling Fan

F510L-CL Minka-Aire®

Dyno - LED 52" Ceiling Fan

SKU: F1000-ORB
Brand: Minka-Aire®
Finish: Oil Rubbed Bronze

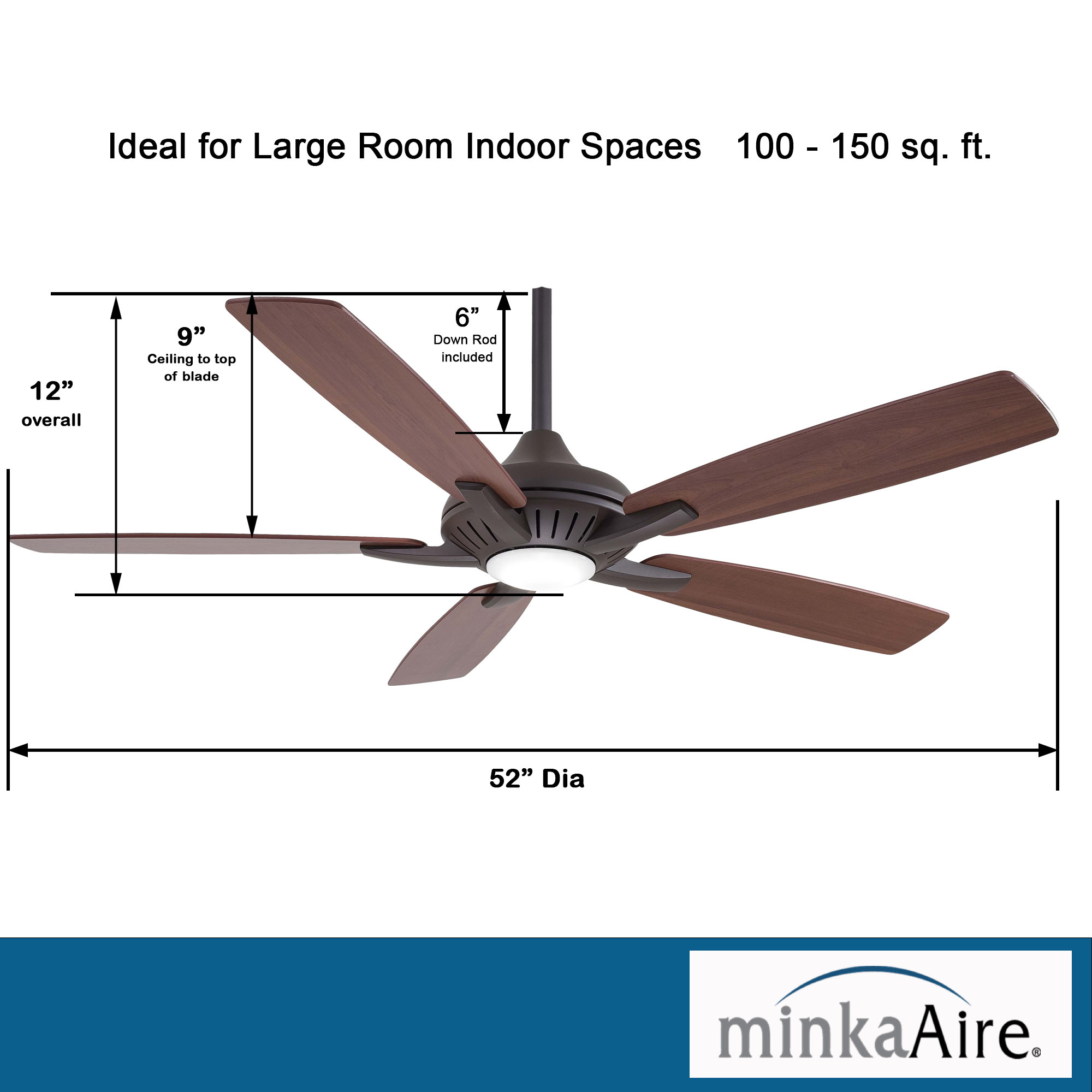

Measurements

Blade Material: PLYWOOD CONSTRUCTION
Blade Sweep: 52
Blade Pitch: 12 DEGREES
Downrod 1: 6
Power: AC
Motor Size: AC 153 X 17 MM

Control Method

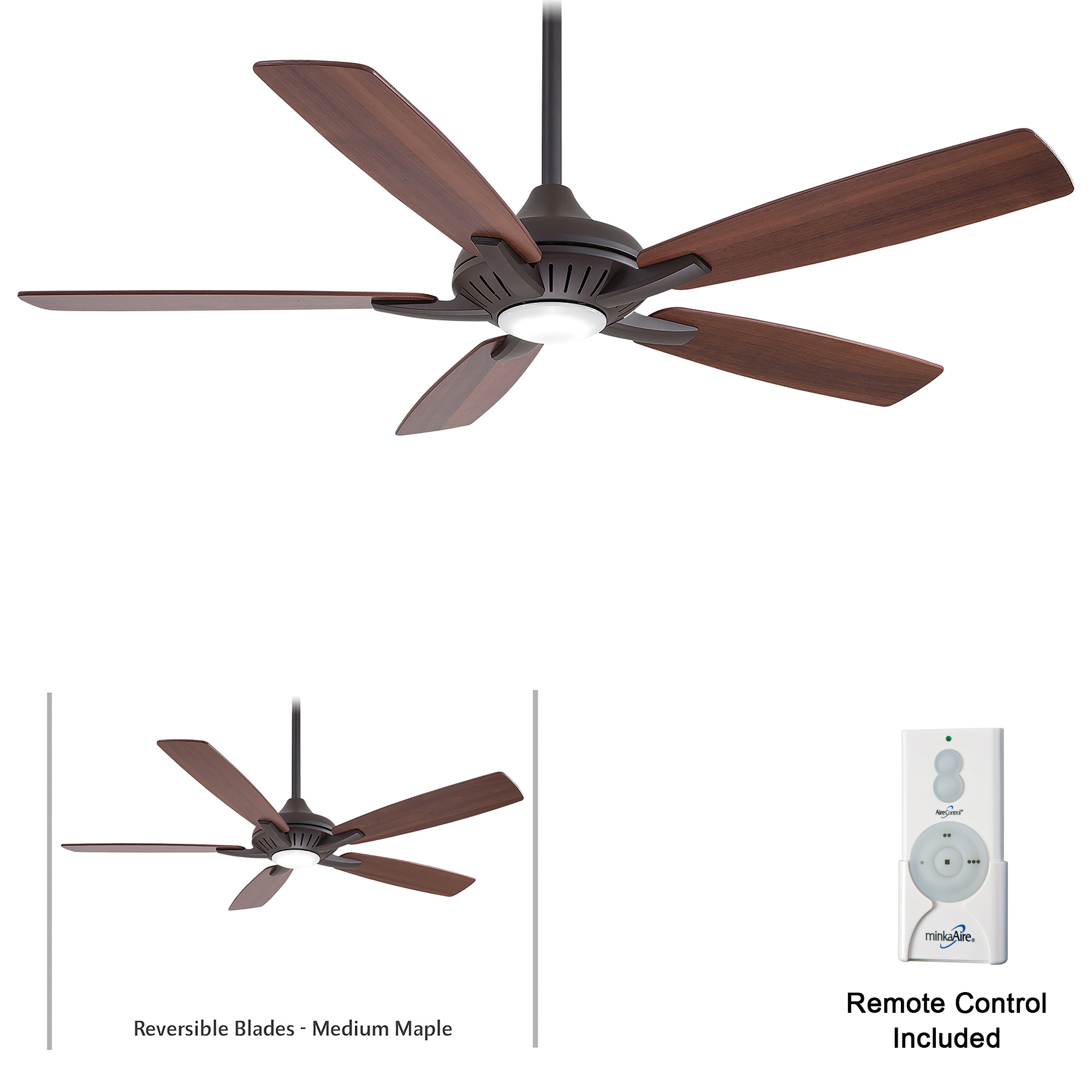

Control Type: 256 BIT HAND HELD REMOTE w/LED CANOPY RECIEVER
Reverse Capable: Yes

Lamping

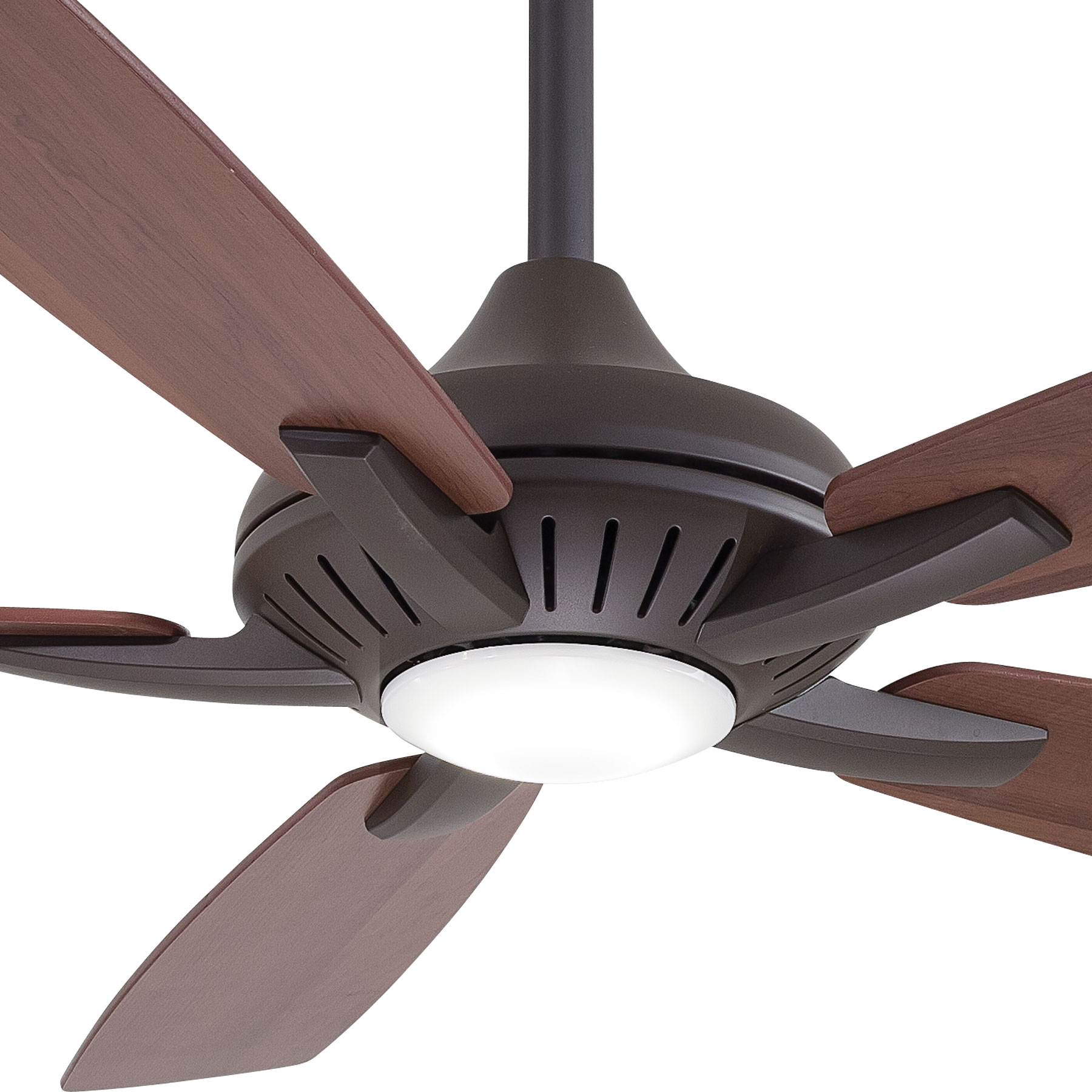

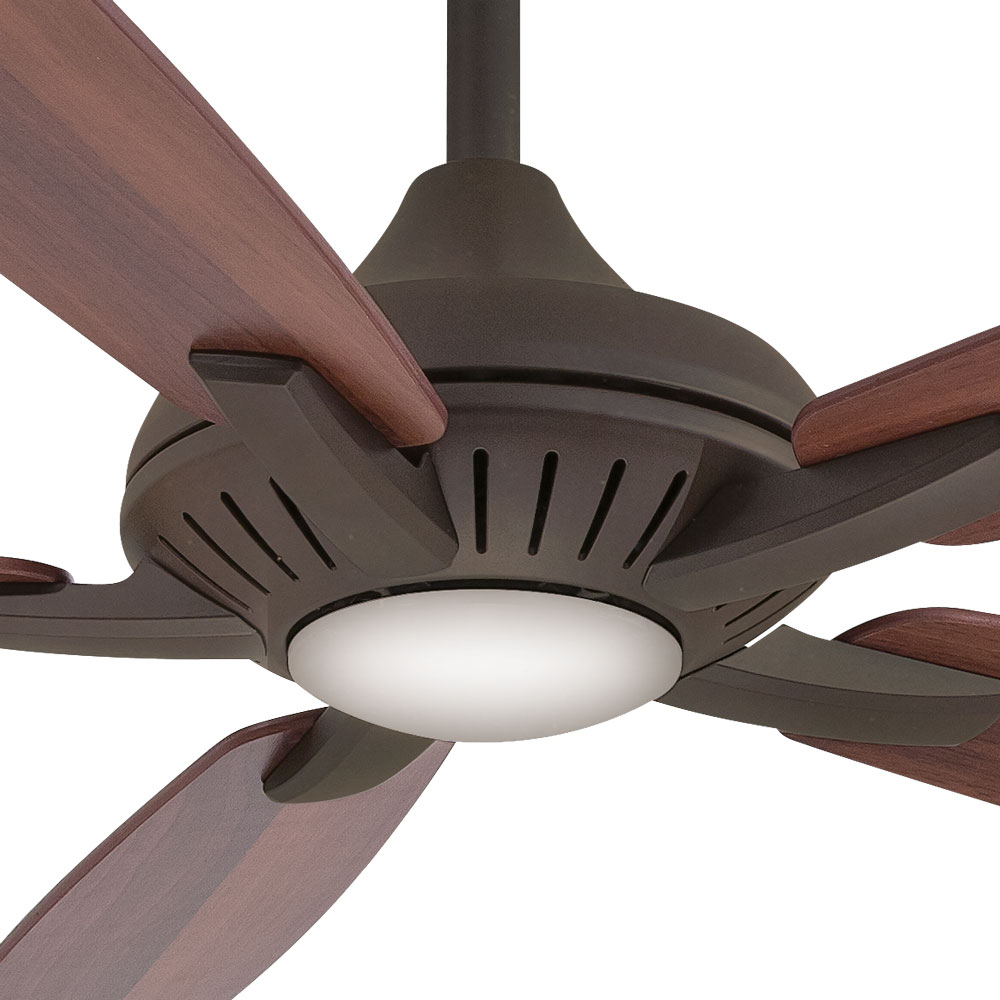

Light Kit: Yes
Light Kit Description: SAMSUNG 16W LED MODULE
Bulb: Z42 LED
Bulb/LED Included: Yes
Socket Type: Y40 LED MODULE
Max Wattage: 16
Dimmable: Y

Shade

Shade Finish: FROSTED
Shade Qty: 1

Low Speed

RPM: 62
Amps: 0.22
Watts: 10.54
CFM: 1520.0

Medium Speed

RPM: 115
Amps: 0.375
Watts: 30.6
CFM: 3492.0

High Speed

RPM: 172
Amps: 0.57
Watts: 64.8
CFM: 4509.0

energy-guide

Patent

U.S. Patent(s): D762,836; D762,839; D780,905

pdf icon

Instruction Manual - English

download pdf
pdf icon

Instruction Manual - Spanish

download pdf
pdf icon

Product Specifications

download pdf
